How to Identify an Unknown Thread Before Ordering Gauges

Need gauges for this? GageTools manufactures GO/NO-GO thread plug gauges and thread ring gauges in Dongguan, China. Standard sizes ship from stock within 72 hours, MOQ is 1 piece, and every RFQ gets a reply within 24 hours — request a quote.

Tools You Need

• Digital or dial calipers
• Metric and inch thread pitch gauges (with 55° and 60° leaves if possible)
• A magnifier or loupe for small threads
• A thread reference chart (metric, UN, BSP, NPT)

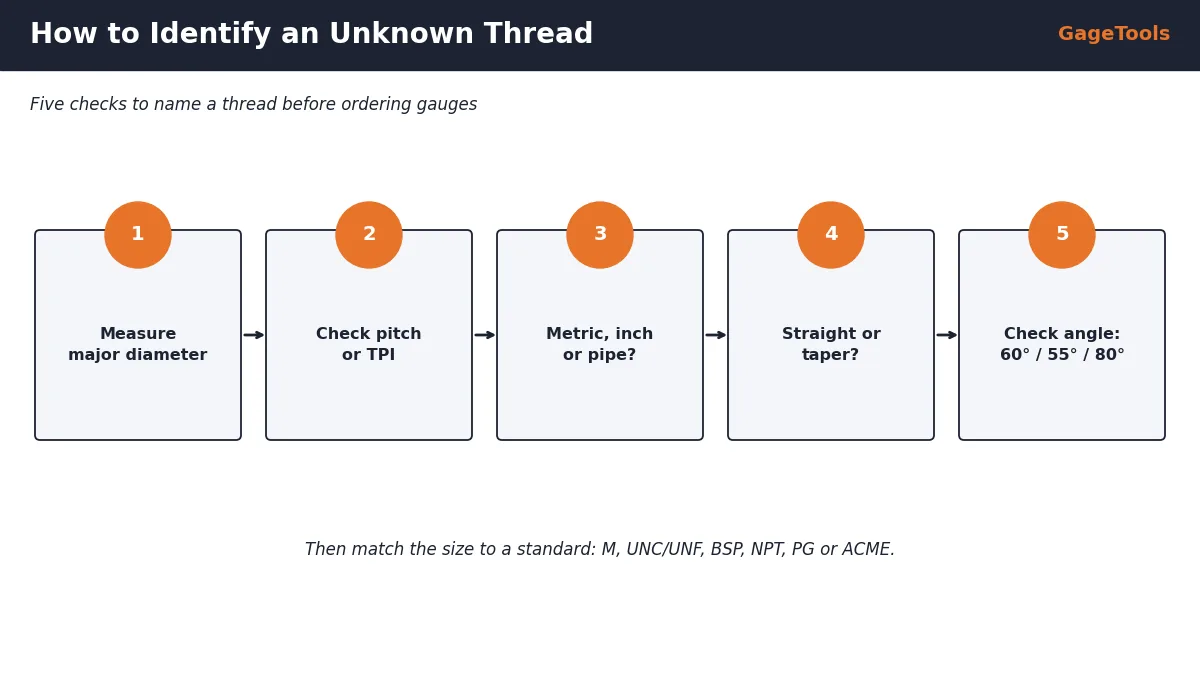

The Five Checks, Step by Step

1. Measure the major diameter. On an external thread, measure across the crests. On an internal thread, measure the bore at the crests or use a known bolt. Expect the reading to be slightly under nominal on bolts.
2. Find the pitch or TPI. Try metric and inch pitch gauge leaves until one sits cleanly with no light between the teeth. Or measure across 10 threads and divide.
3. Decide metric, inch or pipe. A clean fit on a metric leaf (e.g. 1.5 mm) means metric; on an inch leaf (e.g. 13 TPI) means UN or Whitworth. A diameter much larger than the nominal size suggests a pipe thread (BSP or NPT).
4. Check for taper. Measure the diameter at both ends of the thread. A difference means a taper thread such as NPT, BSPT or API.
5. Confirm the flank angle. 60° for metric, UN and NPT; 55° for BSW, BSF and BSP; 80° for PG; 29°/30° trapezoidal for ACME and Tr.

Quick Match Table

Threads That Are Easy to Mix Up

When the Thread Matches No Standard

Some parts use special threads: non-standard diameters, special pitches, modified forms or old company standards. In that case we can work from a sample part, a worn gauge, or your measurements to reverse-engineer the thread and make matching GO/NO-GO gauges. See replacing a gauge without a drawing.

Identifying an Internal Thread (Nut or Tapped Hole)

Internal threads are harder to measure because you cannot reach the crests easily. These methods help:

• Use a known bolt: if a standard bolt screws in smoothly by hand, the thread is probably the same size and pitch. Confirm with the pitch gauge on the bolt.
• Measure the minor diameter: use calipers inside the hole across the crests of the internal thread; compare with tap drill tables.
• Take an impression: for larger holes, a thread impression compound or a cast shows the profile and pitch.
• Try GO plug gauges of candidate sizes: only if you already have them — never force a gauge.

Recognising Pipe Threads

Pipe thread sizes are named after nominal bore, not outside diameter, so a “1/2 inch” pipe thread measures about 21 mm across the threads. If your measurement is much larger than the name would suggest, you are almost certainly looking at a pipe thread.

Record What You Found

Once identified, write the full designation on the drawing or work instruction, including the class if it is known. This saves the next person from repeating the process and makes gauge ordering straightforward.

Special and Non-Standard Threads

All of these can be gauged. Special threads simply need the gauge to be designed from a drawing, specification or sample rather than a standard table.

Taking Photos That Help Identification

• Photograph the thread side-on, with a ruler or calipers in the frame.
• Include a close-up with a pitch gauge leaf sitting in the thread.
• Show both ends of the thread to reveal any taper.
• Add a photo of the whole part so its function is clear.
• Note any markings on the part or the drawing number.

Identifying Trapezoidal and ACME Threads

Power-transmission threads on lead screws, vices and jacks are usually ACME (inch, 29°) or Trapezoidal (metric, 30°). They have flat crests and roots and a much deeper, wider profile than fastening threads.

A 1-5 ACME and a Tr24x5 can look alike. Measure pitch in both inches and millimetres, and check the angle, before ordering gauges.

Once Identified: Finding the Class

Knowing the thread size is only half the job. To order the correct gauge you also need the tolerance class. Look for it on the drawing, on the mating part’s specification, or on an existing gauge. If none is available:

Summary

Identifying a thread comes down to five facts: diameter, pitch, system, taper and angle. With calipers, a pitch gauge set and the quick match table, most threads can be named in minutes. Watch out for look-alikes such as 3/4-16 UNF and M18x1.5, or 1/2″ BSPP and 1/2″ NPT. When a thread matches no standard, a sample part, old gauge or drawing is enough for us to identify it and make matching GO/NO-GO gauges.

Key Terms

Quick definitions of the terms used in this guide:

Practical Tip: Keep Reference Bolts

A small box of known-good bolts and nuts in common metric, UNC, UNF and BSP sizes is one of the most useful identification tools in any workshop. Trying a reference bolt in an unknown hole is often faster than measuring.
