Direct Answer: Most custom thread gauge orders start with a paid first-article sample. Expect 5 to 10 working days for a sample made from an approved drawing, with the sample cost typically credited back against the bulk order once it is approved. Confirm sample lead time, sample cost, and whether that cost is deducted from your production order before you commit to a bulk quantity.
Have a drawing? GageTools makes custom thread gauge samples with MOQ 1 piece, and calibration certificates are available on request. Upload your drawing for a quote.
Need gauges for this? GageTools manufactures GO/NO-GO thread plug gauges and thread ring gauges in Dongguan, China. Standard sizes ship from stock within 72 hours, MOQ is 1 piece, and every RFQ gets a reply within 24 hours — request a quote.
Why Suppliers Charge for a Sample
Machining, grinding, heat treatment and inspection cost close to the same amount whether a supplier makes one gauge or one hundred. A paid sample covers that setup cost. Most manufacturers credit some or all of the sample fee back once you place the bulk order, so ask for this in writing before you pay.

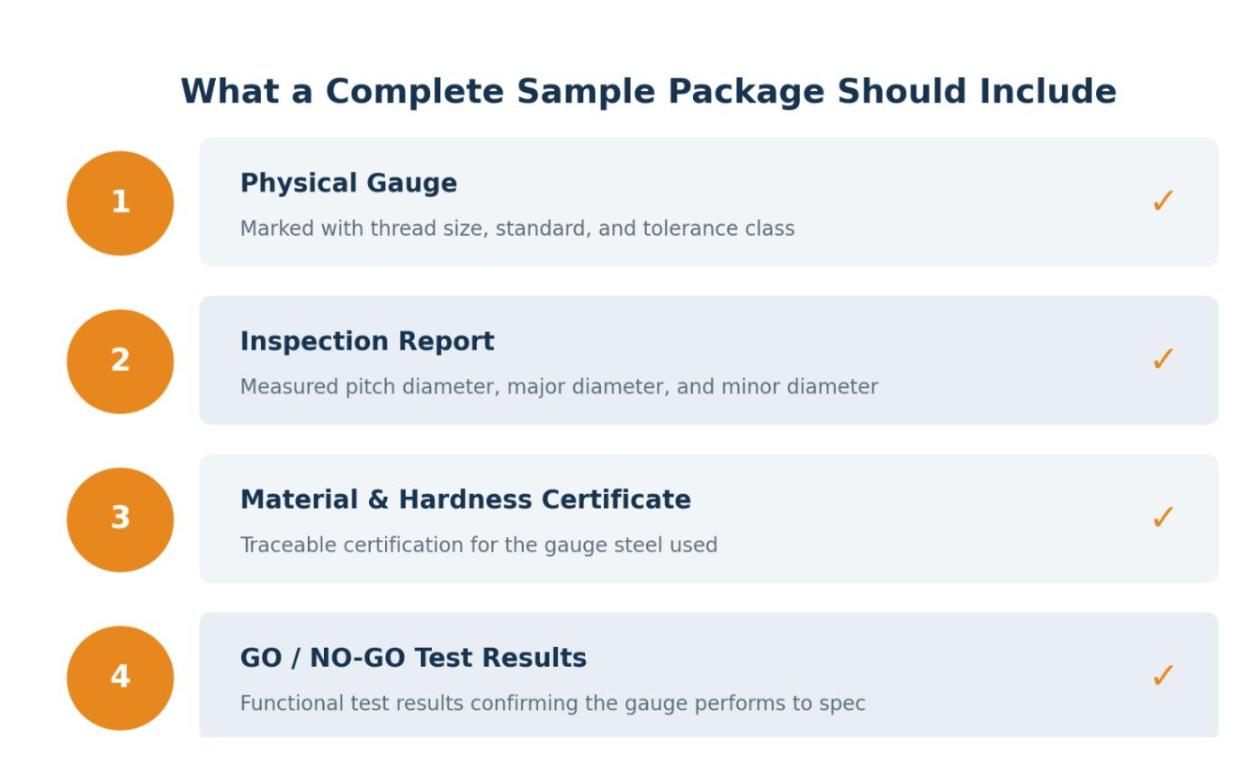

What a Sample Package Should Include
- The physical gauge, marked with thread size, standard and tolerance class
- An inspection report showing the measured pitch, major and minor diameter
- A material and hardness certificate for the gauge steel
- GO and NO-GO functional test results where applicable

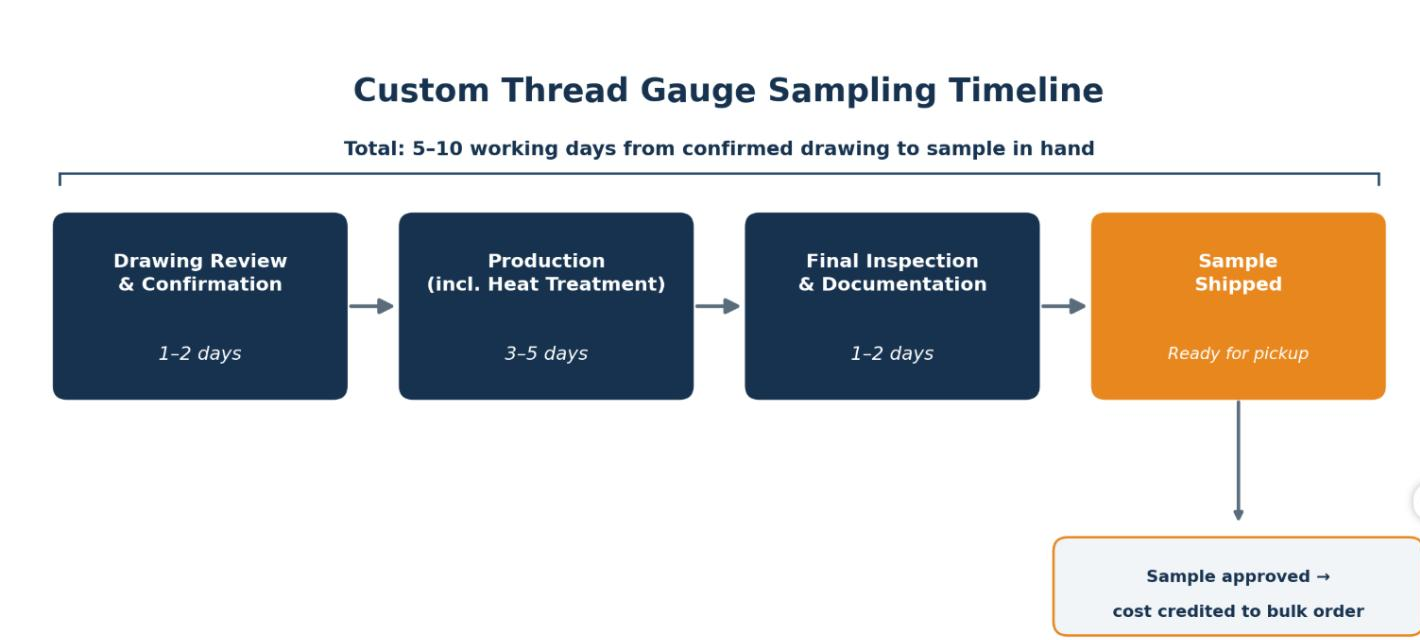

Typical Sample Timeline
Drawing review and confirmation usually takes 1 to 2 working days. Production, including heat treatment, takes another 3 to 5 working days. Final inspection and documentation add 1 to 2 more days. In total, plan for 5 to 10 working days from a confirmed drawing to a sample in hand, longer for unusual sizes or non-standard tolerance classes.
How to Evaluate a Sample Before Approving Bulk Production
Check the sample against your drawing dimension by dimension, not just the GO and NO-GO function. Confirm the marking and serial number format match what you will need for incoming inspection. Review the material certificate and ask questions about anything that looks inconsistent with your specification before you sign off.
What to Confirm Before You Approve
Ask your supplier to confirm the bulk lead time once the sample is approved, whether the sample cost is credited against the production order, and how long the quoted unit price stays valid. Getting these three points in writing avoids surprises when you place the full purchase order.
| Aspect | Sample Order | Bulk Production Order |
|---|---|---|
| Purpose | Verify dimensions, fit and function before you commit | Fulfill your full production quantity |
| Typical Lead Time | 5–10 working days | Confirmed only after the sample is approved |
| Cost | Paid upfront, often credited back once approved | Full unit pricing per the confirmed quote |
| Documentation | Inspection report, material/hardness certificate, GO/NO-GO results | Same documentation, plus batch traceability records |
Frequently Asked Questions About Thread Gauge Sampling
Is the sample fee refundable or credited toward my bulk order?
Most manufacturers credit some or all of the sample fee against your bulk production order once you approve the sample, but this is not automatic everywhere. Get it in writing before you pay. See our Thread Gauge Price Guide for how sample and bulk pricing typically relate.
What happens if the sample fails inspection or doesn’t match my drawing?
A reputable supplier will rework or remake the sample at no extra cost if it does not meet your drawing. Before you approve any sample, check it dimension by dimension using our Sample Approval Checklist.
What certificates and documentation should come with the sample?
Expect an inspection report with measured pitch, major and minor diameter, plus a material and hardness certificate for the gauge steel. Learn what these documents should show in our guides to thread gauge material and hardness and how to read a calibration certificate.
Can I skip the sample stage and order directly in bulk?
You can, but it is risky for a new thread size, tolerance class or drawing revision: any dimensional issue then shows up across your entire batch instead of one gauge. Most experienced buyers only skip sampling on repeat orders that exactly match a previously approved drawing. See Custom Thread Gauges from Drawing for what a supplier needs to quote either path.
What details should I send to get an accurate sample quote?
Send your drawing or thread specification, tolerance class, quantity planned for bulk, and any plating or documentation requirements. Our Thread Gauge RFQ Checklist covers exactly what to include for a fast, accurate quote.
