Should Thread Gauges Be Used Before or After Plating?

For buyers sourcing gauges for plated fasteners, tapped components or threaded shafts, the inspection stage is part of the specification. A thread size alone does not tell a manufacturer which gauge limits your process requires.

1. Start with the Finished-Part Requirement

Identify the complete thread callout, applicable standard and drawing revision. Confirm whether the stated limits apply before coating, after coating or at both stages.

If the drawing does not make this clear, obtain clarification from the responsible engineer or customer. Do not create a coating allowance by selecting a different tolerance class without approval.

Also distinguish coating on the workpiece from coating on the gauge itself. These are separate requirements and should be listed separately in the enquiry.

2. Understand the Difference Between the Two Inspection Stages

3. Provide the Coating Specification, Not Just Its Name

“Zinc plated” or “nickel plated” is incomplete information for defining a custom gauge requirement. Provide the coating specification, thickness range and relevant drawing notes. Explain whether the thread is coated, masked or subject to another specified treatment.

The relationship between coating thickness and thread dimensions depends on thread geometry and the process. Avoid applying a simple diameter adjustment without checking the governing method.

Vermont Gage’s technical discussion of pre-plate threads explains why coating information and a reviewed gauge specification are needed before manufacture.

4. Do Not Treat 7H or 6e as Universal Plating Solutions

A tolerance designation is not a substitute for evaluating the coating requirement. Do not assume that every plated internal thread should be checked with a 7H gauge before coating, or that every plated external thread requires 6e.

Ask for the proposed gauge limits and their basis. The responsible technical reviewer should confirm that the proposal matches the approved product and process requirements.

Where special limits are needed, reference them explicitly in the accepted specification and purchase order.

5. Avoid Confusing Process Control with Final Acceptance

Passing a pre-plating check does not establish that the finished part will pass after coating. The coating operation and its variation still affect the finished thread.

Illustrative example: a buyer orders a gauge using the finished thread designation but intends to use it before plating. The gauge arrives as quoted, yet does not address the intended process-control requirement. Stating “inspection before plating” and approving the required limits would help prevent this mismatch.

Similarly, a gauge intended for a pre-plating condition should not be used to release finished parts unless the approved inspection plan explicitly supports that use.

6. Include These Details in Your Gauge Enquiry

Send the controlled drawing, complete thread designation, applicable standard, internal or external thread identification, inspection stage, coating specification and thickness range. Include any already-approved pre-plating limits.

State the required gauge members, quantity, marking and documentation. If both stages need gauges, list them as separate items so their specifications and records remain distinct.

For the remaining ordering details, use our custom thread gauge RFQ checklist.

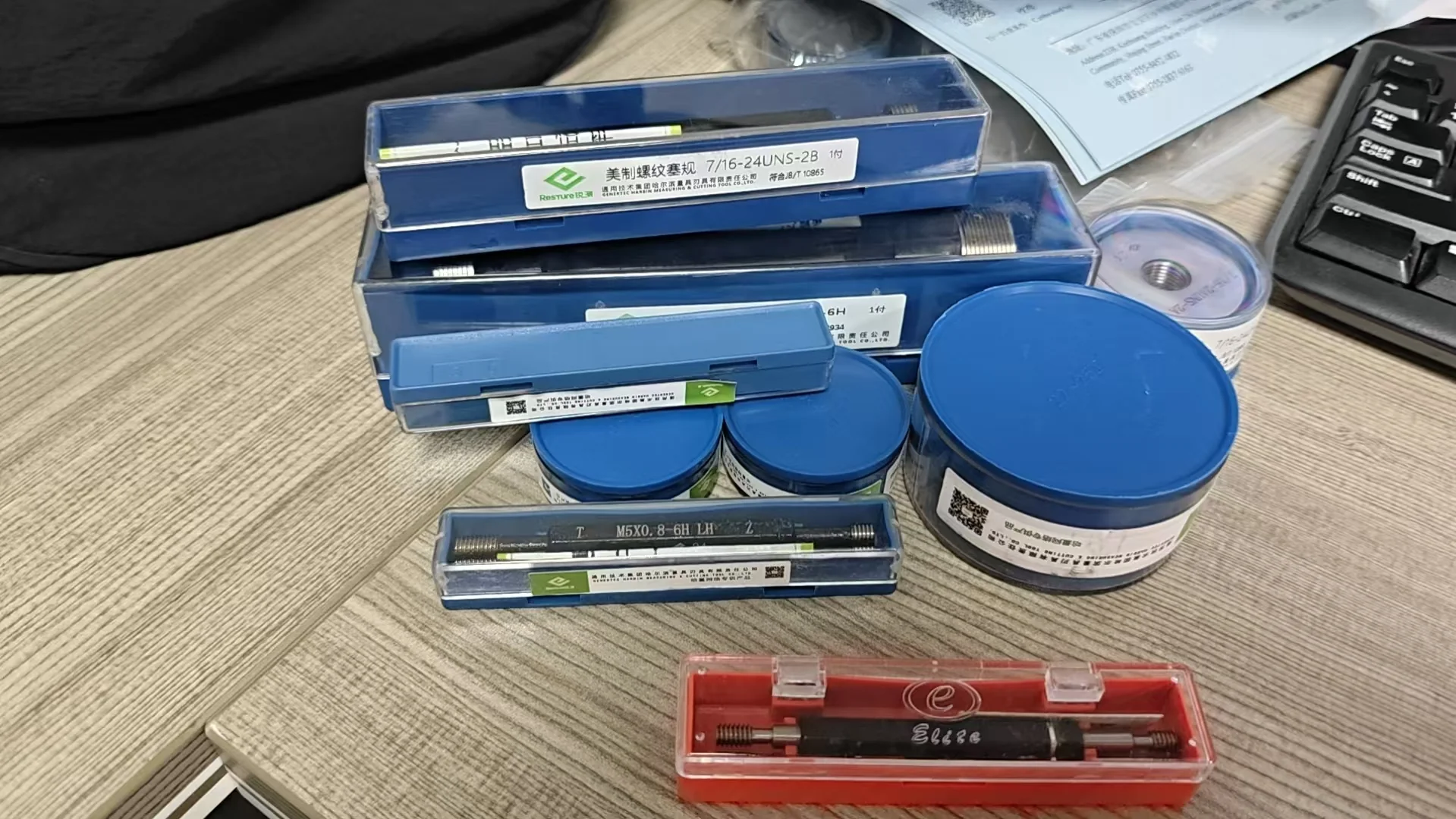

7. Confirm Marking and Storage Before Delivery

When similar gauges serve different inspection stages, specify clear identification. Agree on wording or gauge IDs that connect each tool to the correct procedure and report.

Check the individual markings and documentation on receipt. Case color alone should not determine which gauge an operator uses.

Buyer Questions

Can I use my finished-thread gauge before plating?

It may not verify the required pre-plating condition. Confirm the applicable limits and inspection purpose with your technical team before relying on it.

Is coating thickness enough to order a pre-plating gauge?

No. The manufacturer also needs the thread specification, finished requirements, coating process and approved basis for the pre-plating limits.

Can I order before-and-after gauges together?

You can request both in the same enquiry. Specify each inspection stage separately and approve the corresponding gauge requirements and identification.

What should I do if parts pass before plating but fail afterward?

Review the finished requirement, pre-plating limits, coating results and inspection method. Do not change the final acceptance gauge merely to make the parts pass.
